=== Customizing the Mesh ===
[[File:wire_pic4.png|thumb|300px|[[MoM3D Module]]'s mesh settings dialog]]

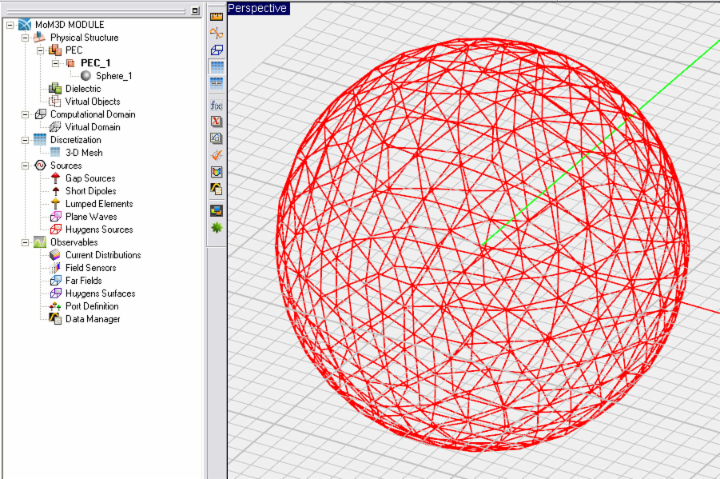

To set the wire-frame mesh properties, click on the [[File:mesh_tool_tn.png]] button of the '''Compute Toolbar''' or select '''Menu [[File:larrow_tn.png]] Compute [[File:larrow_tn.png]] Discretization [[File:larrow_tn.png]] Mesh Settings...'''or right click on the '''3-D Mesh''' item in the '''Discretization''' section or the Navigation Tree and select '''Mesh Settings...''' from the contextual menu. The MoM3D Mesh Settings Dialog opens up. You can change the mesh generation algorithm from the drop-down list labeled '''Mesh Type''' and select one of the two options: '''Regular Wireframe''' or '''Structured Wireframe'''. You can also set the '''Mesh Sampling Rate''', whose default value is 20 Cells/λ<sub>0</sub>.By default, [[Surface Objects|surface objects]] or solids are wire-framed at the mesh cell size. Therefore, each wire segment of the wire-frame mesh contains one cell. Another parameter that can affect the shape of the mesh especially in the case of [[Solid Objects|solid objects]] is the '''Curvature Angle Tolerance'''. This parameter expressed in degrees determines the apex angle of the triangular cells of the structured mesh. Lower values of the angle tolerance will results in more pointed triangular cells.
[[File:wire_pic4.png]]
The [[MoM3D Module]]'s mesh settings dialog.
[[File:wire_pic6_tn.png]]
